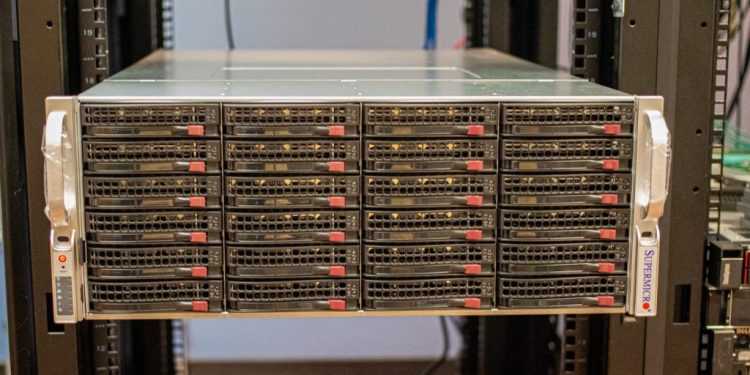

Supermicro Storage SuperServer (36-Bay, 3rd Gen Xeon)

Supermicro offers a wide variety of storage servers, in additional to pure JBODs that are similar looking. Of course, the top of the line are NVMe servers. There’s also a line of destiny-optimized offerings in the top-loading storage server family. These are more designed for hyperscalers and other use cases where terabytes per rack U is the primary requirement. For the rest of the world, Supermicro offers what it calls enterprise-optimized storage servers. This family covers your commonly found 1U-4U options with externally accessed drive bays.

Inaugural AfCFTA Conference on Women and Youth in Trade

Instagram fined €405m over children’s data privacy

Supermicro Storage SuperServer SSG-540P-E1CTR36H Specifications

Product SKUs
SSG-540P-E1CTR36H	SuperServer SSG-540P-E1CTR36H (Black)
Motherboard
Super X12SPI-TF
Processor
CPU	Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Support CPU TDP 270W
System Memory
Memory	Memory Capacity: 8 DIMM slots Up to 2TB: 8x 256 GB DRAM Up to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM Intel® Optane™ persistent memory 200 series
Memory Voltage	1.25 V
Error Detection	Yes
On-Board Devices
Onboard SATA or Optional Rear Bay	SATA3 (6Gbps) via C621A Chipset; RAID 0, 1, 5, 10 support
36-bay SAS connectivity	SAS3 (12Gbps) via Broadcom 3908; RAID 0, 1, 5, 6, 10, 50, 60 support
Chipset	Intel® C621A
Network Connectivity	2x 10GbE BaseT with Intel® X550
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN	1 RJ45 Dedicated IPMI LAN port 2 RJ45 10GBase-T LAN ports
USB	4 USB 2.0 port(s) (2 headers; 2 rear) 5 USB 3.2 Gen 1 port(s) (2 headers; 2 rear; 1 Type A)
Video	1 VGA port(s)
Serial Port	1 COM Port(s) (1 header)
DOM	2 SuperDOM (Disk on Module) port with built-in power
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	IPMI2.0 Redfish API SSM Intel® Node Manager SPM KVM with dedicated LAN SUM NMI
Power Configurations	ACPI/APM Power Management
PC Health Monitoring
CPU	7+1 Phase-switching voltage regulator module (VRM) Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Chassis
Form Factor	4U Rackmount
Model	CSE-847BTS-R1K23LPBP4
Dimensions and Weight
Height	7″ (178mm)
Width	17.2″ (437mm)
Depth	27.5″ (699mm)
Package	17.5″ (H) x 27″ (W) x 39.5″ (D)
Weight	Net Weight: 66.5 lbs (29.7 kg) Gross Weight: 102.5 lbs (46.4 kg)
Available Color	Black
Front Panel
Buttons	Power On/Off System Reset
LEDs	Device Activity LAN 1 Activity LAN 2 Activity Power Failure LED Power status System information
Expansion Slots
PCI-Express (PCI-E)	Slot 2: PCI-E 4.0 x8 LP Slot 4: PCI-E 4.0 x16 LP Slot 6: PCI-E 4.0 x16 LP Slot 7: PCI-E 4.0 x8 LP
Drive Bays / Storage
Hot-swap	36x 3.5″ hot-swap SATA/SAS drive bays
M.2	1x PCI-E 3.0 x4 and SATA Form Factor: 2280, 22110 Key: M-key
Peripheral Bays	2x 2.5″ SATA or NVMe drive bays (optional)
System Cooling
Fans	7x (8cm x8cm x3.8cm) heavy-duty fans with optimal fan speed control
Air Shroud	1 Air Shroud(s)
Power Supply
AC 1200W, Titanium Level, Redundancy,PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
Dimension (W x H x L)	76 x 40 x 336 mm
Output Type	Gold Finger
Certification	Titanium Level
Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
