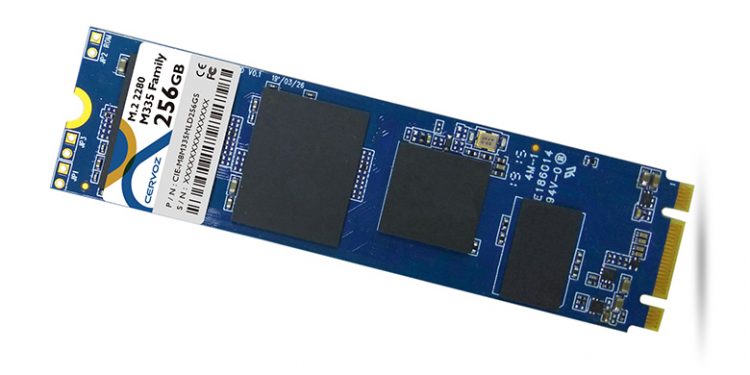

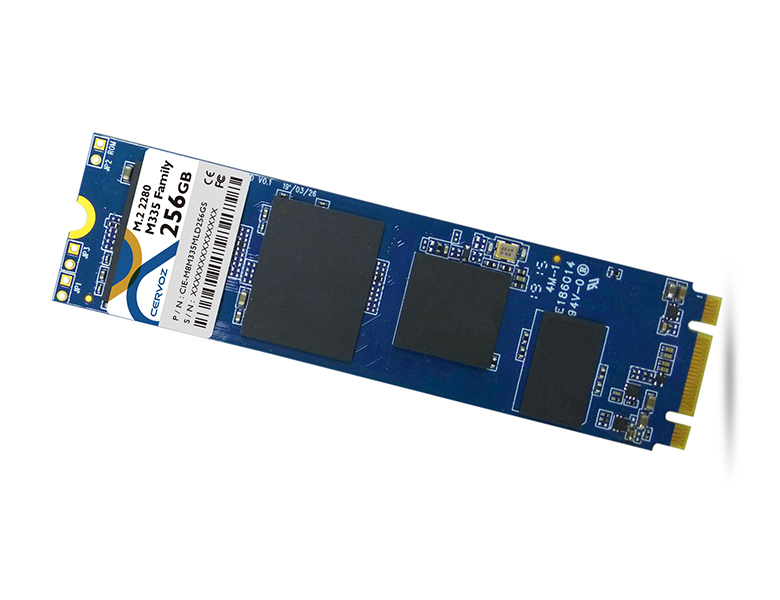

Cervoz Industrial M.2 2280 Embedded Module M335 family is a Solid State Flash Disk product that is in compliance with the M.2 and SATA III standards. M.2 2280 M335 family fits in any M.2 2280 sockets in a PC or motherboard; it can be used for both booting and storage purposes.
M335 family uses superior quality preselected multi-level cell (MLC) NAND flash memory from the industry leading manufacturer Micron. This product includes various capacities to choose from.
M335 family offers outstanding performance and reliability; the product family is a perfect solution for price sensitive semi-industrial and general industrial applications.
| Form Factor | M.2 2280 |
| Interface | SATA III 6.0Gb/s (backward compatible to 3.0Gb/s, 1.5Gb/s) |
| Connector | M.2 |
| NAND Flash Type | MLC |
| Capacity | 32GB/64GB/128GB/256GB |
| Sequential Read | up to 545MB/s |
| Sequential Write | up to 435MB/s |
| DDR3 DRAM Buffer | Included |
| ECC Scheme | up to 66bits / 1K Byte |
| MTBF | 2,000,000 hours |
| TeraByte Written (TBW) | 32GB : 31 64GB : 63 128GB : 125 256GB : 250 |
| Low Power Management | DIPM/HIPM mode |
| Supply Voltage | +3.3V DC +/-5% |
| Power Consumption | Active mode: < 2295mW Idle mode: < 390mW Slumber mode: <70mW |
| Dimension (LxWxH) | 80.00*22.00*3.90mm |
